进口高熔点液用外部循环屏蔽泵

进口高熔点液用外部循环屏蔽泵

一、进口高熔点液用外部循环屏蔽泵产品概述

美国尼科NICO进口高熔点液用外部循环屏蔽泵是一种电动机和水泵一体化结构的泵类产品工艺,适用于熔点高易结晶的液体,还有内部(轴内)循环型的R型。可靠性能高,没有轴密封,做到时完全无泄露,因其电机自身低噪音,加之屏蔽泵低故障率安全环保和维护成本等优点赢得广大用户欢迎。进口高熔点液用外部循环屏蔽泵型式及适用范围:泵和电机带夹套,可大幅度提高电机的耐热性。适用于高熔点液体,温度高达250℃。夹套中可通入蒸汽或一定温度的液体,防止高熔点液体产生结晶。结构上没有动密封,只有在泵的外壳处有静密封,因此可以做到完全无泄漏,特别适合输送易燃、易爆、贵重液体和有毒、腐蚀性及放射性液体。

二、进口高熔点液用外部循环屏蔽泵选型参数

公称通径:40-300mm

流量范围:5-90(m3/h)

扬程范围:10-60m

功率范围:0.37-15KW

转速范围:1450-2900r/min

温度范围:-20℃~250℃

工作压力:≤1.6Mpa

泵体材质:WCB、304、316

三、进口高熔点液用外部循环屏蔽泵产品特点

1、进口高熔点液用外部循环屏蔽泵因能保证完全不泄漏,故可输送对人体和环境、设备有害的及价格昂贵的易泄漏的液体。

2、不会吸入空气,适于真空系统及输送与空气接触发生变质的液体。

3、无油封设计,能可靠地输送一般泵难以输送的高温、高压、低温及温度压力变大的液体。

4、轴承利用输送液体自行润滑,不需润滑油,故不污染输送液体,并免去了定期注油的麻烦。

5、泵结构合理,电机和泵同轴。体积小,重量轻,占地面积小,运行平稳,安装方便,无须调整,维修方便。

6、叶轮采用的水力模型,具有效率高,性能好等特点。

7、电机无冷却风扇,故运行噪音和振动都非常小。

8、泵进出口法兰规格设计与标准阀门相同,且位于同一中心线上,中心低,便于管道布置,泵房设计也要合理,实用。

9、零部件的标准化、系列化程度高。

10、电机及接线盒均采用防水防爆结构,可在户外安全使用。

11、新采用的石墨轴承,具有耐磨性能高、摩擦系数低、不老化、抗泥沙等优点。

12、电机顶部没有自动排气阀,当水泵使用时只要打开进水阀门松开排气阀边上的气嘴,泵体及电机内的空气就会自动从电机顶部的自动排气阀内自动排出,排气后又会自动立刻关闭,不会使介质流出泵外,能确保水泵的正常运行,而且在使用过程中,管道内如有空气进入,它都能自动将其排出,该功用使泵在使用过程中都无需专人经常去打开阀门排气,极大的降低了正常使用成本与人力。

13、进口高熔点液用外部循环屏蔽泵的便拆式结构使泵在正常的使用维护中,如除水垢。检查石墨轴承的磨损度时,只需拆开电机壳与电机下端上的连接螺丝,在电机壳的顶出螺丝孔内,顶部电机与定五组件部分,因此维护与定期检查极为方便。

四、进口高熔点液用外部循环屏蔽泵主要用途

1、进口高熔点液用外部循环屏蔽泵供输送清水及物理化学性质类似于精炎的其它液体之用,适用介质温度-30℃+90℃。特别适用于工业和城市给排水,消防增压,高层建筑增压送水,园林喷灌,远距离输送,暖通制冷循环,浴室等冷暖立循环增压及设备配套。

2、进口高熔点液用外部循环屏蔽泵供输送介质温度较离场合,适用介质温度100℃-380℃。主要适用于能源、冶金、化工、纺织、造纸及宾馆、饭店、浴室等部门。

3、进口高熔点液用外部循环屏蔽泵供输送不含固体颗粒,适用于石化、化工、冶金、电力、造纸、食品、制药、科研院校和合成纤维等部门。

4、进口高熔点液用外部循环屏蔽泵供输送液化气,易气化介质。

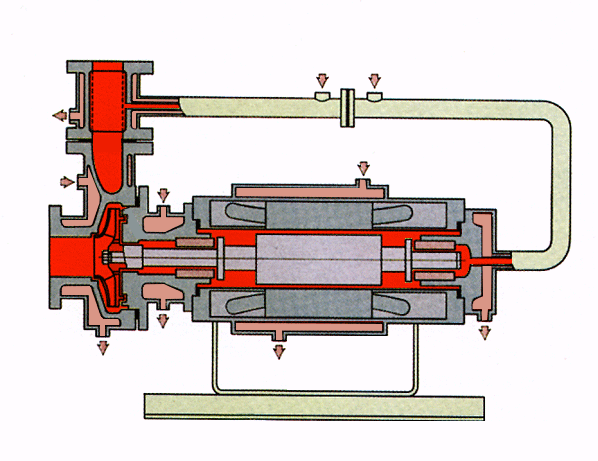

五、进口高熔点液用外部循环屏蔽泵原理图

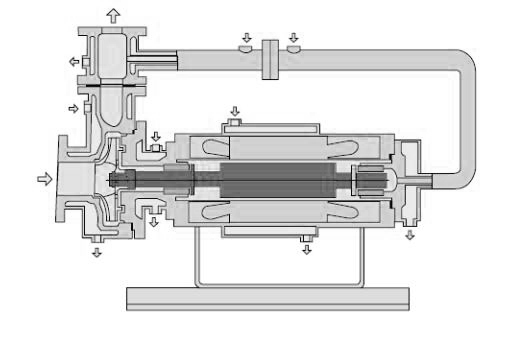

六、进口高熔点液用外部循环屏蔽泵动态图


七、进口高熔点液用外部循环屏蔽泵性能参数

序号型号流量扬程(m)效率转速电机功率(kw)必须汽蚀余量
m3/hL/S
1GR40-1006.31.7512.55414500.553.5
2GR40-100A5.61.56105214500.373.5
3GR40-1256.31.75204614501.13.5
4GR40-125A5.61.56164529000.753.5
5GR40-1606.31.75324029002.23.5
6GR40-160A5.91.64283929001.53.5
7GR40-160B5.51.53243829001.13.5
8GR40-2006.31.755033290043.5
9GR40-200A5.91.644431290033.5
10GR40-200B5.31.47362929002.23.5
11GR40-2506.31.75802829007.53.5
12GR40-250A5.91.64702829005.53.5
13GR40-250B5.51.536027290043.5
14GR40-100(I)12.53.4712.56214501.13.5
15GR40-100(I)A113.05106014500.753.5
16GR40-125(I)12.53.47205814501.53.5
17GR40-125(I)A113.05165714501.13.5
18GR40-160(I)12.53.473252290033.5
19GR40-160(I)A11.73.25285129002.23.5
20GR40-160(I)B10.42.89225029001.53.5
21GR40-200(I)12.53.47504629005.53.5
22GR40-200(I)A11.73.254445290043.5
23GR40-200(I)B10.62.943644290033.5
24GR40-250(I)12.53.4780382900113.5
25GR40-250(I)A11.63.22703829007.53.5
26GR40-250(I)B10.83603729007.53.5
27GR40-250(I)C102.78523629005.53.5
28GR50-10012.53.4712.56214501.13.5
29GR50-100A113.05106014500.753.5
30GR50-12512.53.47205814501.53.5
31GR50-125A113.05165714501.13.5
32GR50-16012.53.473252290033.5
33GR50-160A11.73.25285129002.23.5
34GR50-160B10.42.89225029001.53.5
35GR50-20012.53.47504629005.53.5
36GR50-200A11.73.254445290043.5
37GR50-200B10.62.943644290033.5
38GR50-25012.53.4780382900113.5
39GR50-250A11.63.22703829007.53.5
40GR50-250B10.83603729007.53.5
41GR50-250C102.78523629005.53.5
42GR50-100(I)256.9412.56914501.53.8
43GR50-100(I)A22.36.19106714501.13.8
44GR50-125(I)256.942068145033.8
45GR50-125(I)A22.36.49166614502.23.8
46GR50-160(I)256.943263145043.8
47GR50-160(I)A23.46.52862145043.8
48GR50-160(I)B21.662458145033.8
49GR50-200(I)256.94505829007.53.8
50GR50-200(I)A23.56.53445729007.53.8
51GR50-200(I)B21.86.06385529005.53.8
52GR50-250(I)256.9480502900153.8
53GR50-250(I)A23.46.570502900113.8
54GR50-250(I)B21.6660482900113.8
55GR50-315(I)256.94125402900303.8
56GR50-315(I)A23.76.58113402900223.8
57GR50-315(I)B22.56.2510139290018.53.8
58GR50-315(I)C20.65.7285382900153.8
59GR65-100256.9412.56914501.23.8
60GR65-100A22.36.19106714501.13.8
61GR65-125256.942068145033.8
62GR65-125A22.36.19166614502.23.8
63GR65-160256.943263145043.8
64GR65-160A23.46.52862145043.8
65GR65-160B21.662458145033.8
66GR65-200256.94505829007.53.8
67GR65-200A23.56.53445729007.53.8
68GR65-200B21.86.06385529005.53.8
69GR65-250256.9480502900153.8
70GR65-250A23.46.570502900113.8
71GR65-250B21.6660492900113.8
72GR65-315256.94125402900303.8
73GR65-315A23.76.58113402900223.8
74GR65-315B22.56.2510139290018.53.8
75GR65-315C20.65.728538290015.53.8
76GR65-100(I)5013.912.573145034.2
77GR65-100(I)A44.712.5107214502.24.2
78GR65-125(I)5013.92072.514505.54.2
79GR65-125(I)A4512.51671145044.2
80GR65-160(I)5013.9327114507.54.2
81GR65-160(I)A46.713287014507.54.2
82GR65-160(I)B43.312246914505.54.2
83GR65-200(I)5013.950672900154.2
84GR65-200(I)A4713.144662900114.2
85GR65-200(I)B43.512.1386529007.54.2
86GR65-250(I)5013.980592900224.2
87GR65-250(I)A46.7137059290018.54.2
88GR65-250(I)B43.31260582900154.2
89GR65-315(I)5013.9125542900344.2
90GR65-315(I)A46.512.9110542900304.2
91GR65-315(I)B44.512.4100532900304.2
92GR65-315(I)C4111.485512900224.2
93GR80-1005013.912.573145034.2
94GR80-100A44.712.4107214502.24.2
95GR80-1255013.92072.514505.54.2
96GR80-125A4512.51671145044.2
97GR80-1605013.9327114507.54.2
98GR80-160A46.713287014507.54.2
99GR80-160B43.312246914505.54.2
100GR80-2005013.95067290015.54.2
101GR80-200A4713.144662900114.2
102GR80-200B43.512.1386529007.54.2
103GR80-2505013.980592900224.2
104GR80-250A46.7137059290018.54.2
105GR80-250B43.31260582900154.2
106GR80-3155013.9125542900374.2
107GR80-315A46.512.9110542900304.2
108GR80-315B44.512.4100532900304.2
109GR80-315C4111.485512900224.2
110GR80-100(I)10027.812.57614505.54.2
111GR80-100(I)A8924.71074145044.2
112GR80-125(I)10027.820761450114.2
113GR80-125(I)A8924.7167414507.54.2
114GR80-160(I)10027.832761450154.2
115GR80-160(I)A93.52628741450114.2
116GR80-160(I)B86.624.124721450114.2
117GR80-200(I)10027.850741450224.2
118GR80-200(I)A93.5264473145018.55.5
119GR80-200(I)B8724.238711450155.5
120GR100-10010027.812.57614505.55.5
121GR100-100A8924.71074145045.5
122GR100-12510027.820761450115.5
123GR100-125A8924.7167414507.55.5
124GR100-16010027.832761450155.5
125GR100-160A93.52628741450115.5
126GR100-160B86.624.124721450115.5
127GR100-20010027.850741450225.5
128GR100-200A93.5264473145018.55.5
129GR100-200B8727.238711450155.5
130GR125-10016044.412.5821450115.5
131GR125-100A14339.7107714507.55.5
132GR125-12516044.420801450155.5
133GR125-25A14339.716771450115.5
134GR125-16016044.432781450225.5
135GR125-160A15041.72876145018.55.5
136GR125-1160B13838.324731450155.5
137GR125-20016044.450771450375.5
138GR125-200A15041.744761450305.5
139GR125-200B13838.337.5751450225.5
140GR150-20020055.612.5781450155
141GR150-200A17949.710761450115
142GR150-25020055.62079145018.55
143GR150-250A184.451.217781450155
144GR150-250B16746.414761450115
145GR150-31520055.632781450305.5
146GR150-315A18751.928771450225.5
147GR150-315B17348.12476145018.55.5
148GR150-40020055.650751450455.5
149GR150-400A18751.944741450375.5
150GR150-400B17448.338731450305.5
151GR150-400C16044.432711450225.5
152GR200-20020055.612.5781450155
153GR200-200A17949.710761450115
154GR200-25020055.92079145018.55
155GR200-250A184.451.217781450155
156GR200-250B16746.41476145011.15
157GR200-31520055.632781450305.5
158GR200-315A18751.928771450225.5
159GR200-315B17348.12476145018.55.5
160GR200-40020055.650751450455.5
161GR200-400A18751.944741450375.5
162GR200-400B17448.338731450305.5
163GR200-400C16044.432711450225.5
164GR200-200(I)400111.112.5801450225.5
165GR200-200(I)A35899.41078145018.55.5
166GR200-250(I)400111.420801450305.5
167GR200-250(I)A35899.416781450225.5
168GR200-250(I)B32289.41375145018.55.5
169GR200-315(I)400111.432801450555.5
170GR200-315(I)A374103.928791450455.5
171GR200-315(I)B34696.124781450375.5
172GR200-400(I)400111.450811450755.5
173GR200-400(I)A374103.944801450755.5
174GR200-400(I)B34696.130781450555.5
175GR200-400(I)C32088.932761450455.5
176GR300-2357202001881970556
177GR300-235A657182.51579970456
178GR300-235B60016712.577970376
179GR300-3007202002881970756
180GR300-300A6661852480970756
181GR300-300B623173.12179970556
182GR300-38072020044849701326
183GR300-380A66618538809701106
184GR300-380B614170.63278970906
185GR300-235(I)108030040829701606
186GR300-235(I)A965268.132809701326
